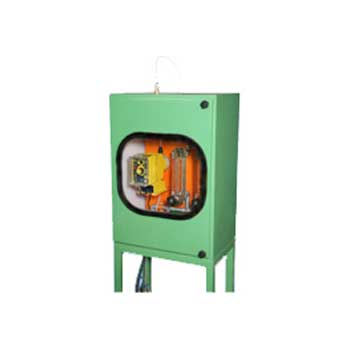

Dosing Panel :

  • ❱ Electronic dosing pump for controlled feeding of liquid finishing compound.
  • ❱ One or more pumps as per process requirement.
  • ❱ Rotameter1 for regulating water quantity mixed with finishing compound for diluting to required strength.
  • ❱ Rotameter2 for regulating water in larger quantity during wash operation.
  • ❱ Usually dosing panel operation is controlled by PLC panel.

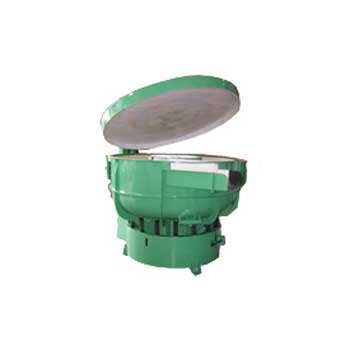

Sound Cover :

  • ❱ For Reducing noise level below 60 db.
  • ❱ Restricts splashing of foaming finishing compound.
  • ❱ It may be manually operated manually or by pneumatic cylinder using electrical pulse.

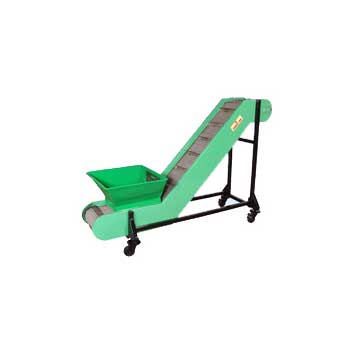

Loading Conveyor :

  • ❱ For loading of components into vibratory finishing bowl.
  • ❱ Many other customized options available to suit a particular application like lift and tilt loader, hydraulic loader, bucket conveyor, vibro feeder etc.
PLC Panel

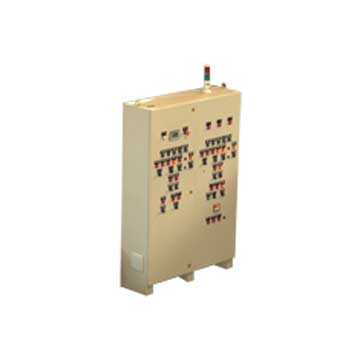

PLC Panel :

  • ❱ It can fully integrate the operations of all the modules viz. Loading Conveyor, Sound Cover, Dosing Panel, Drain, Flapper Actuation,Bowl start stop, Transfer Conveyor, Dryer Etc.
  • ❱ Easy to maintain & gives flexibility of operation.
  • ❱ Quite useful when processing multiple components with different process parameters in the same vibro finishing system.
  • ❱ Touch Screen or Traditional HMI.
Control Panel with VSD

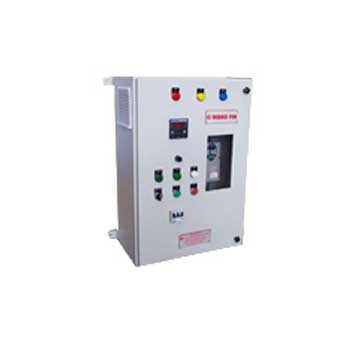

Control Panel with VSD :

  • ❱ It helps in controlling the vibration intensity while processing soft, fragile parts.
  • ❱ Lower motor speed is useful for controlled discharge of components from bowl and during separation cycle.
Simple Control Panel

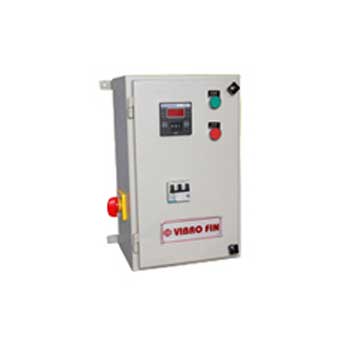

Simple Control Panel :

  • ❱ Gives electrical protection to special vibratory motor.
  • ❱ With or without timer option.
  • ❱ Motor rotation direction can be reversed (as required during unloading).
Magnetic Pick Up

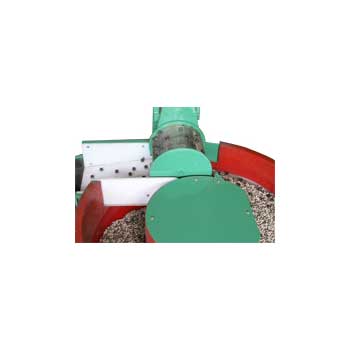

Magnetic Pick Up :

  • ❱ Used for separation of media and ferrous components when screening is not possible .
  • ❱ It can be drum type or can be belt type.
  • ❱ If necessary demagnetiser can be provided.
Vibratory Sorting Table

Vibratory Sorting Table :

  • ❱ Used for separation of media, component and water in SUPER-FIN.
  • ❱ Two Vibro motors give uniform lateral movement to media and components.
  • ❱ It can be used as transfer table, oiling table, washing table etc. in a finishing system.
Belt Dryer

Belt Dryer :

  • ❱ Comprises of belt conveyor and hot air blowing arrangement ( open circuit or close loop).
  • ❱ Useful for bigger parts where corn cob drying is not recommended due to blind holes (clogging problem).
  • ❱ Length of belt and heating capacity will be customized as per requirement of specific component.
Transfer Conveyor

Transfer Conveyor :

  • ❱ Typically belt conveyor to interlink various modules of finishing system, like a common dryer for two or more Vibrators or transferring part to polishing Vibrator after roughing operation etc.
Effluent Treatment Plant

Effluent Treatment Plant :

  • ❱ Used for trapping solid particles from the liquid drained from Vibrator.
  • ❱ To neutralize the liquid discharged from the bowl.
  • ❱ System to be designed as per specific need.
